INTRODUCTION
PROJECT AIM: Drafting new layout design, 3D Visualisation, and New development
TYPE: Single-family, residential
NAME: 13408 Cedar Pointe
TOTAL VENEER SQ.F 2705 SF.
3 CAR GARAGE SQ.F. 775 SF.
BACK PORCH SQ.F. 360 SF.
TOTAL FRAME S F 2636 SF.
NOT IN TOTAL FRAME SQ.F 1135 SF.
OWNER: RADER BUILDING COMPANY
BUILDER: RADER BUILDING COMPANY
LOCATION: 341 St Claire Dr, Edmond, OK 73025
TYPE: Single-family, residential
NAME: 13408 Cedar Pointe
TOTAL VENEER SQ.F 2705 SF.
3 CAR GARAGE SQ.F. 775 SF.
BACK PORCH SQ.F. 360 SF.
TOTAL FRAME S F 2636 SF.
NOT IN TOTAL FRAME SQ.F 1135 SF.
OWNER: RADER BUILDING COMPANY
BUILDER: RADER BUILDING COMPANY
LOCATION: 341 St Claire Dr, Edmond, OK 73025
KEY CHALLENGES
The development of this residential home faced several significant challenges:
• Annular Lot and Large Setbacks: The unique shape of the lot and the considerable setbacks required a creative approach to maximize space utilization, necessitating a highly efficient layout.
• Comprehensive Room Requirements: The design needed to accommodate a 3-car garage, a master bedroom with a spacious master bathroom and closet, a living room, a kitchen, a dining area, a bedroom with an en-suite bathroom, a study/bedroom with an en-suite bathroom, a pantry, a guest powder bath, and a laundry room.
• Annular Lot and Large Setbacks: The unique shape of the lot and the considerable setbacks required a creative approach to maximize space utilization, necessitating a highly efficient layout.
• Comprehensive Room Requirements: The design needed to accommodate a 3-car garage, a master bedroom with a spacious master bathroom and closet, a living room, a kitchen, a dining area, a bedroom with an en-suite bathroom, a study/bedroom with an en-suite bathroom, a pantry, a guest powder bath, and a laundry room.

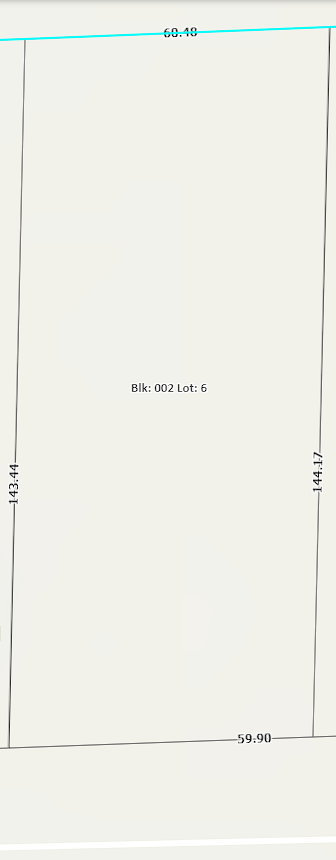

SPACE BEFORE RENOVATION

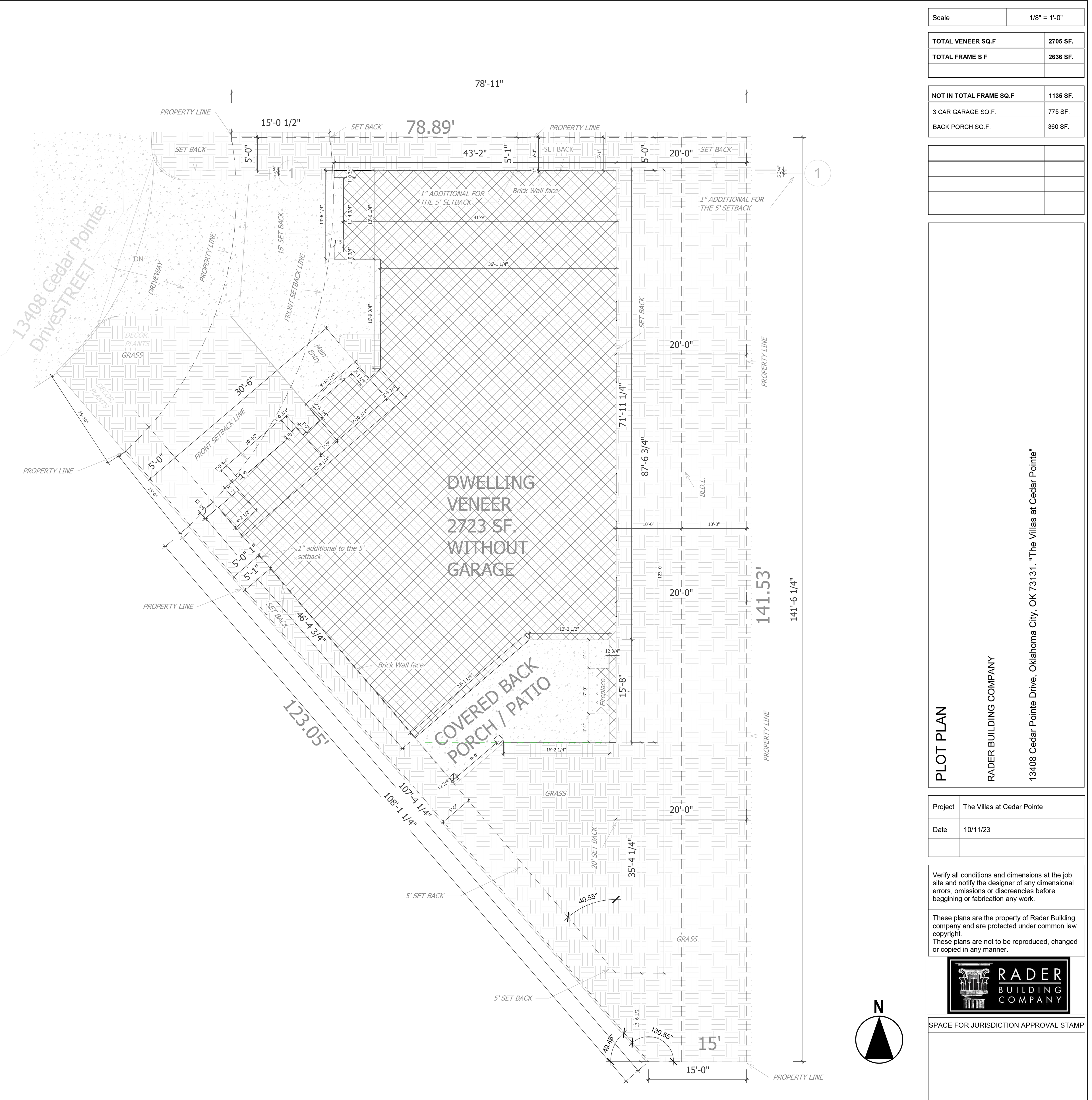

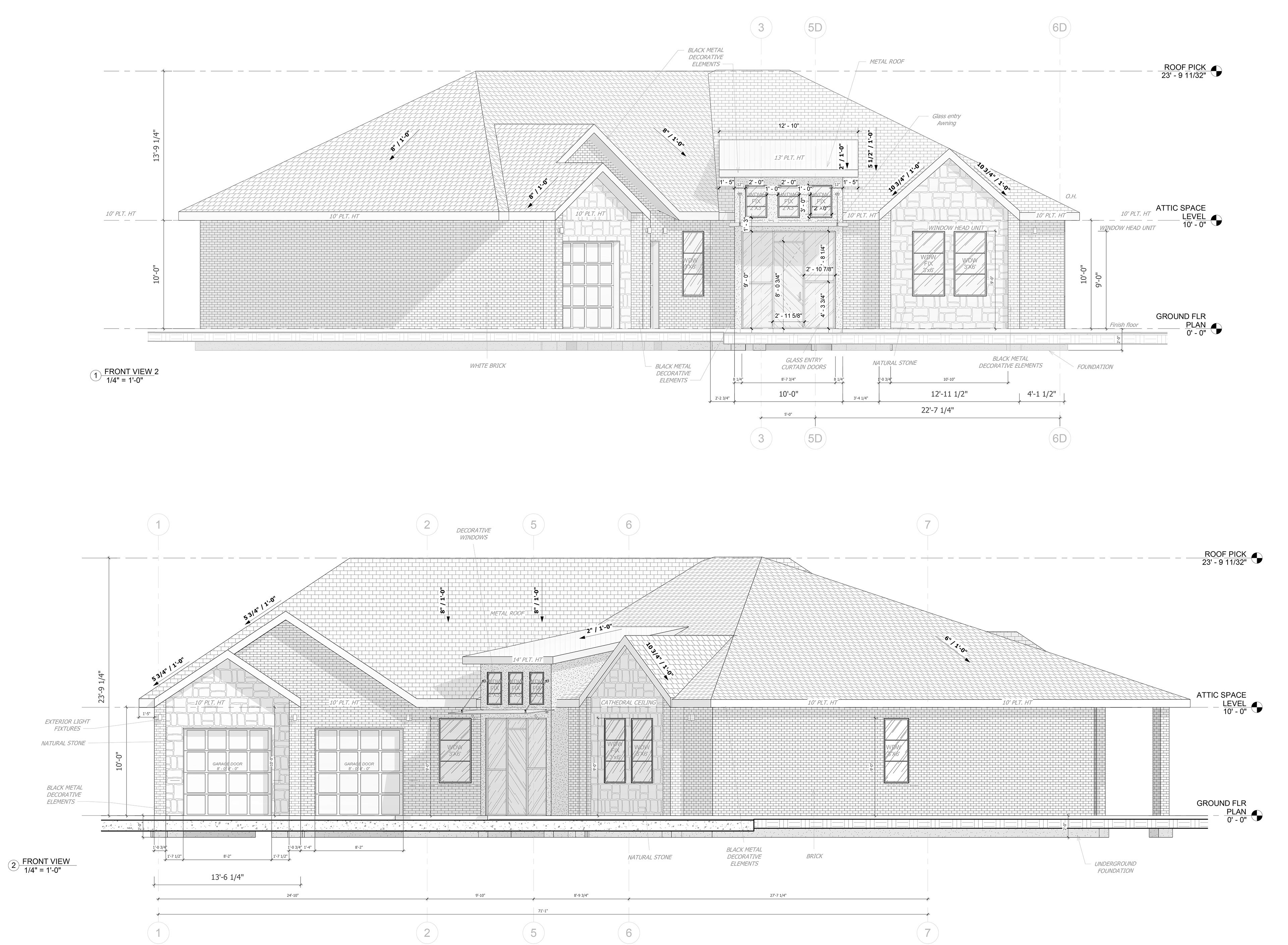

DRAFTING LAYOTS / DEVELOPING ELEVATIONS
• Design Features:
Exterior Materials: Combination of brick and white stucco, providing durability and aesthetic appeal.
Roof Design: Sloped roof with black metal elements, enhancing modern architectural aesthetics.
Windows: Large windows, particularly in the front entry, allow natural light to illuminate the interior spaces.
Garage Doors: Contemporary design with glass panels, adding a modern touch to the façade.

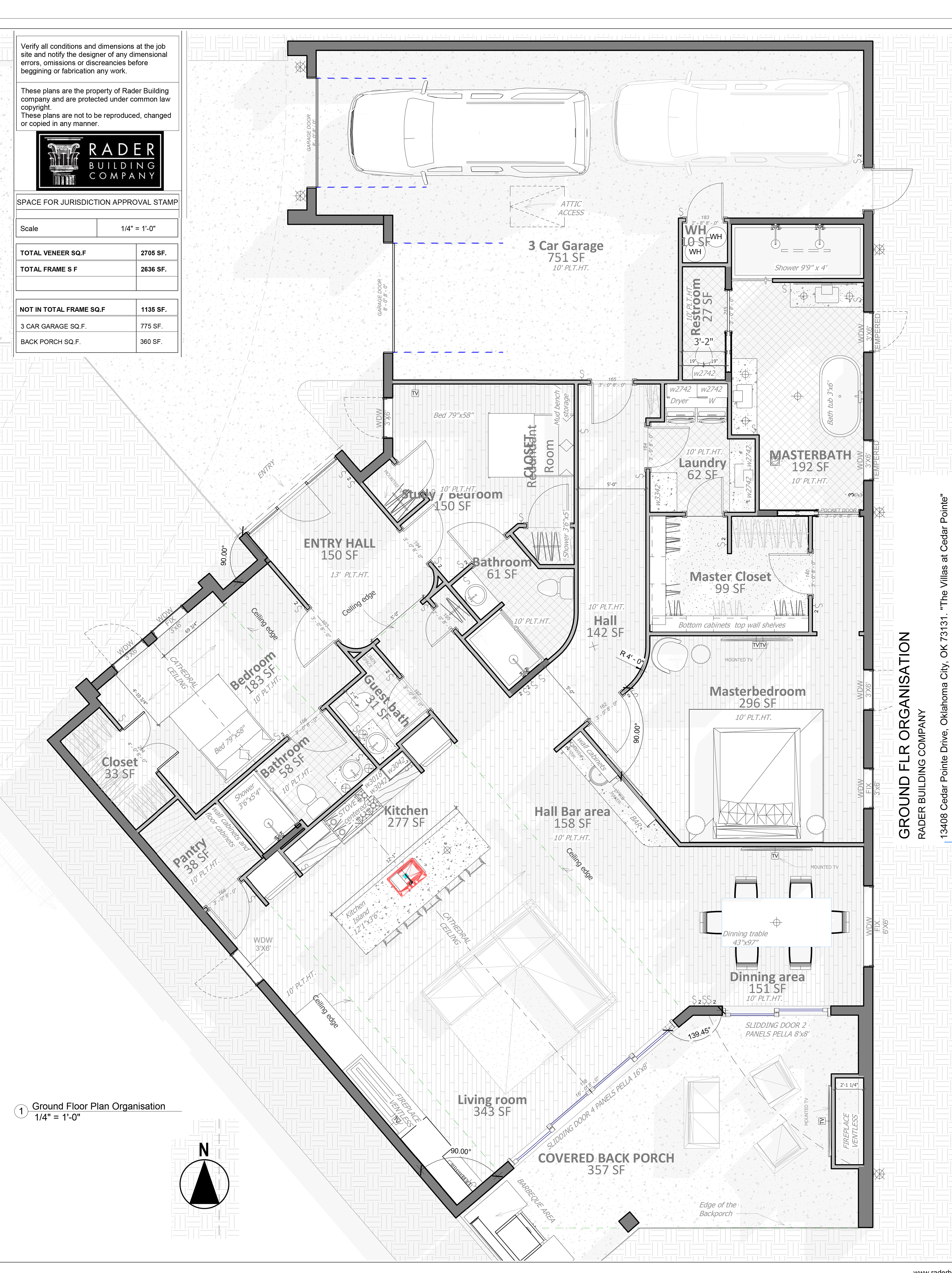

AREAS AND LAYOUT FEATURES
• Hall and Hall Bar Area:
Hall (142 SF) and Hall Bar Area (158.5 SF): Ensures smooth circulation and additional
Hall (142 SF) and Hall Bar Area (158.5 SF): Ensures smooth circulation and additional
• 3-Car Garage (751.5 SF):
Positioned at the front left, allowing easy access and efficient space utilization. Sufficient space for three vehicles, with room for storage.
Positioned at the front left, allowing easy access and efficient space utilization. Sufficient space for three vehicles, with room for storage.
• Entry Hall (150 SF):
Central location providing access to various parts of the house. Designed to welcome guests and direct them
seamlessly to living areas or private spaces.
Central location providing access to various parts of the house. Designed to welcome guests and direct them
seamlessly to living areas or private spaces.
• Living and Dining Areas:
Living Room (343 SF): Central position with an open plan design, enhancing space perception. Connected to the Bar Area
Dining Area (255 SF): Located adjacent to the living room, with direct access to the covered back porch (357 SF), providing a seamless indoor-outdoor connection.
Kitchen (277 SF): Centrally located, facilitating easy access from the living and dining areas.
Includes a pantry (62 SF) ensuring ample storage for kitchen essentials.
Living Room (343 SF): Central position with an open plan design, enhancing space perception. Connected to the Bar Area
Dining Area (255 SF): Located adjacent to the living room, with direct access to the covered back porch (357 SF), providing a seamless indoor-outdoor connection.
Kitchen (277 SF): Centrally located, facilitating easy access from the living and dining areas.
Includes a pantry (62 SF) ensuring ample storage for kitchen essentials.
• Master Suite:
Master Bedroom (250 SF):
Master Bathroom (192.5 SF): Includes essential amenities ensuring comfort.
Master Closet (99.5 SF): Ample storage space.
Laundry Room (62.5 SF): Conveniently located near the master suite for easy access.
Master Bedroom (250 SF):
Master Bathroom (192.5 SF): Includes essential amenities ensuring comfort.
Master Closet (99.5 SF): Ample storage space.
Laundry Room (62.5 SF): Conveniently located near the master suite for easy access.
• Kitchen (277 SF):
Centrally located, facilitating easy access from the living and dining areas.
Includes a pantry (62 SF) ensuring ample storage for kitchen essentials.
Centrally located, facilitating easy access from the living and dining areas.
Includes a pantry (62 SF) ensuring ample storage for kitchen essentials.
DEVELOPED SECTION VIEWS AND DETAILED LAYOUTS FOR THE KITCHEN AND MASTER BATHROOMS

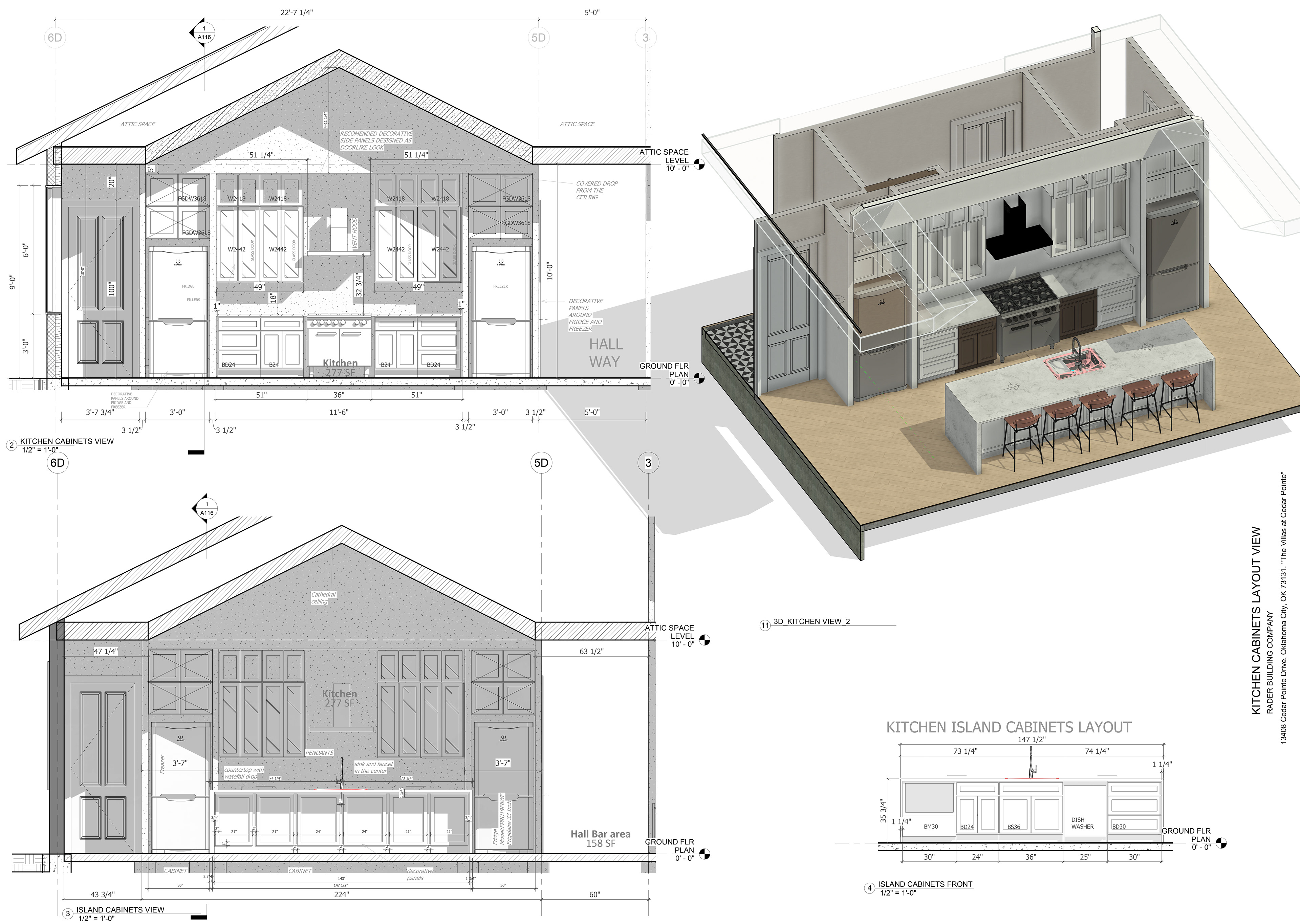

KITCHEN SECTION VIEW AND 3D VIEW

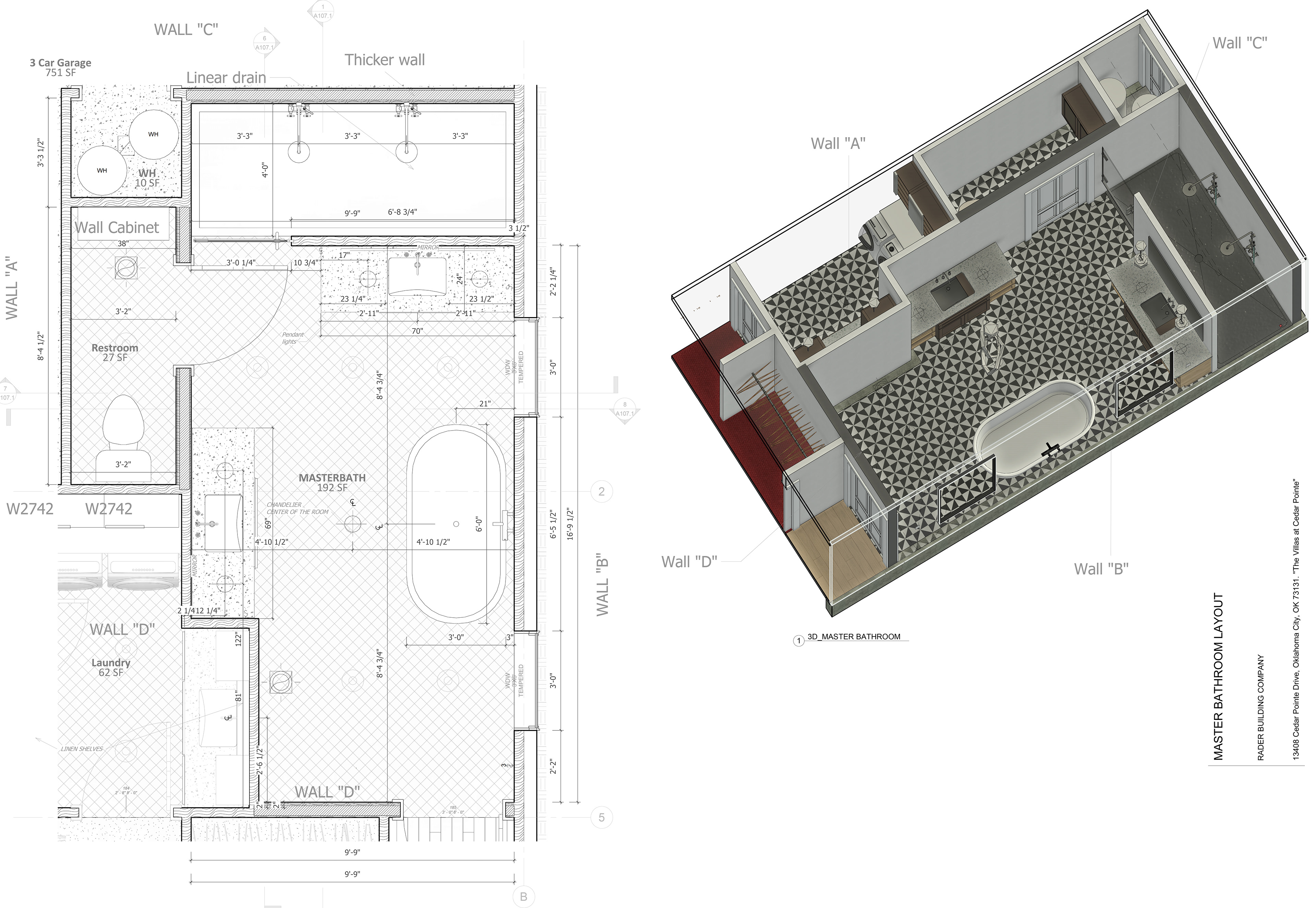

PRIME BATHROOM FLOOR LAYOUT AND 3D VIEW

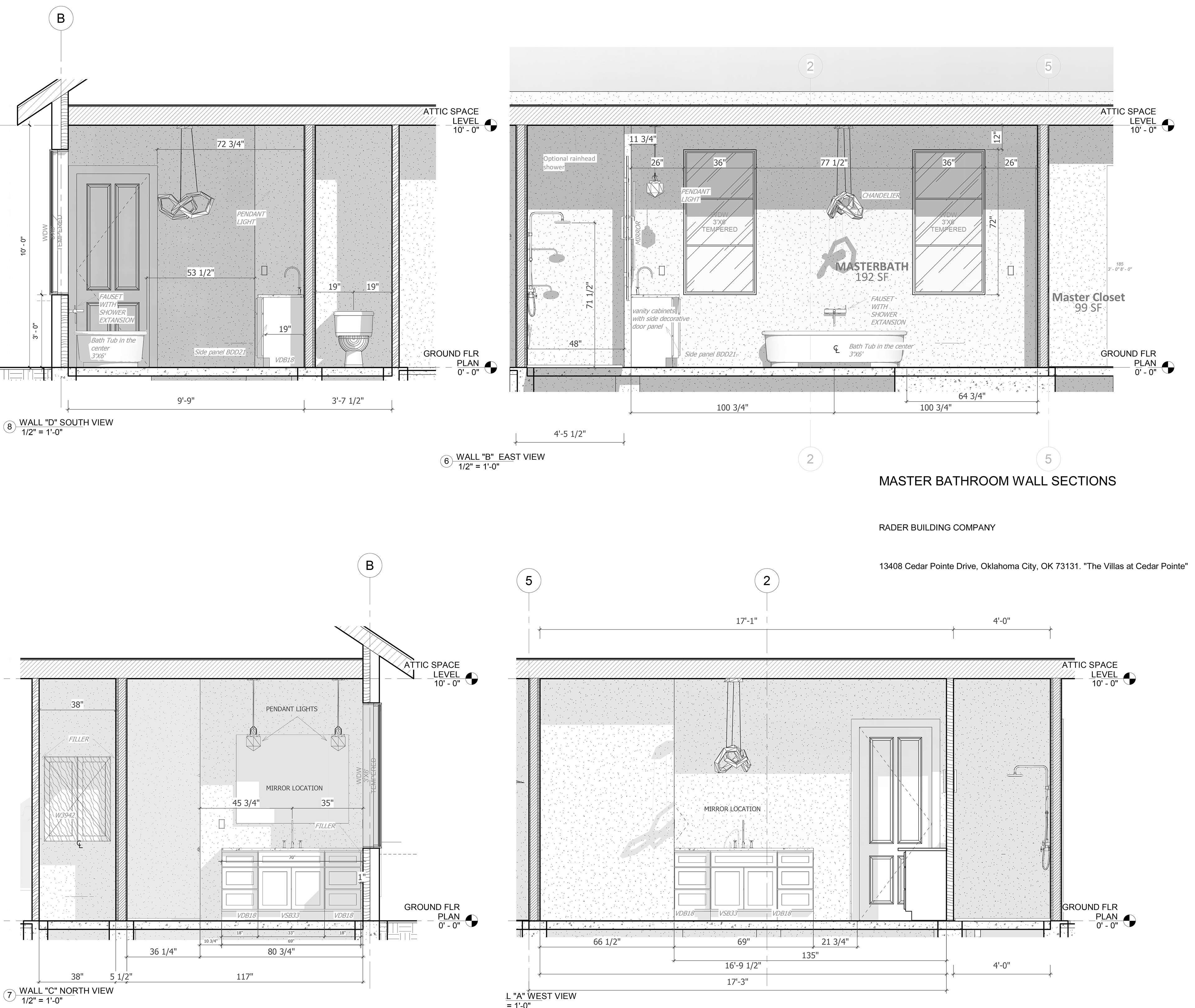

SECTION VIEWS FOR THE PRIME BATHROOM

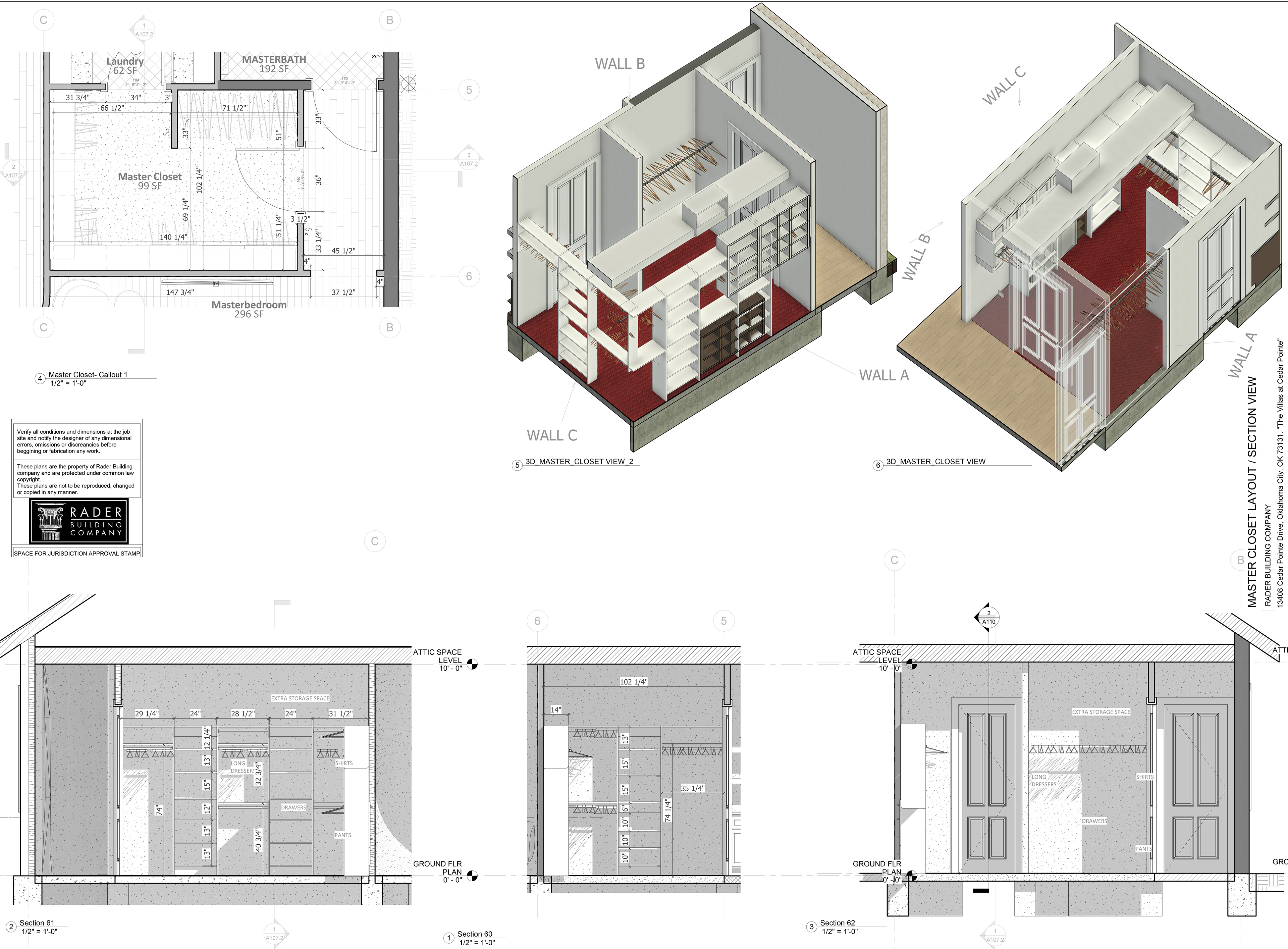

PRIME CLOSET ORGANISATION
MATERIAL SELECTION
MASTER BATHROOM FLOORING AND SHOWER WALL TILE SAMPLES
TILE SAMPLES FOR OTHER BATHROOMS
SAMPLING THE STUCCO COLOUR

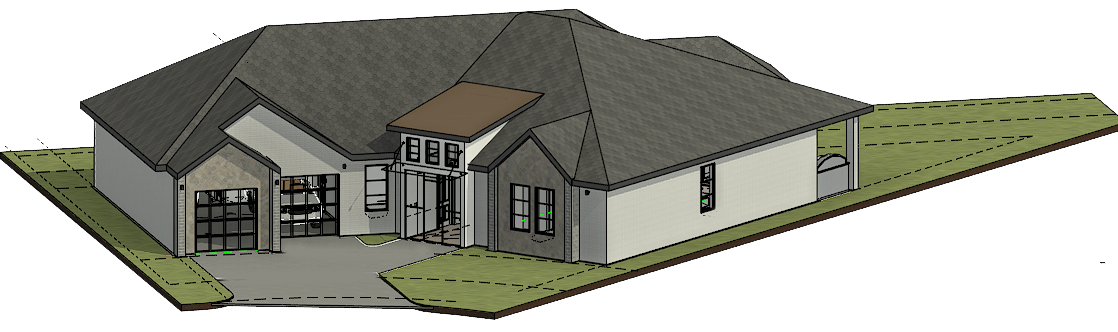

3D VISUALISATION FOR THE EXTERIOR & INTERIOR DESIGN CONCEPT
Front view
Front view
Back porch view
Front view
Front view
Living area / kitchen
Living area / kitchen
Living area / kitchen / bar
View from the second floor
Living area
View to the 2 floor hall
Prime bedroom
Prime Bedroom
CONSTRUCTION PROCESS
Reinforcement preparations for the footing

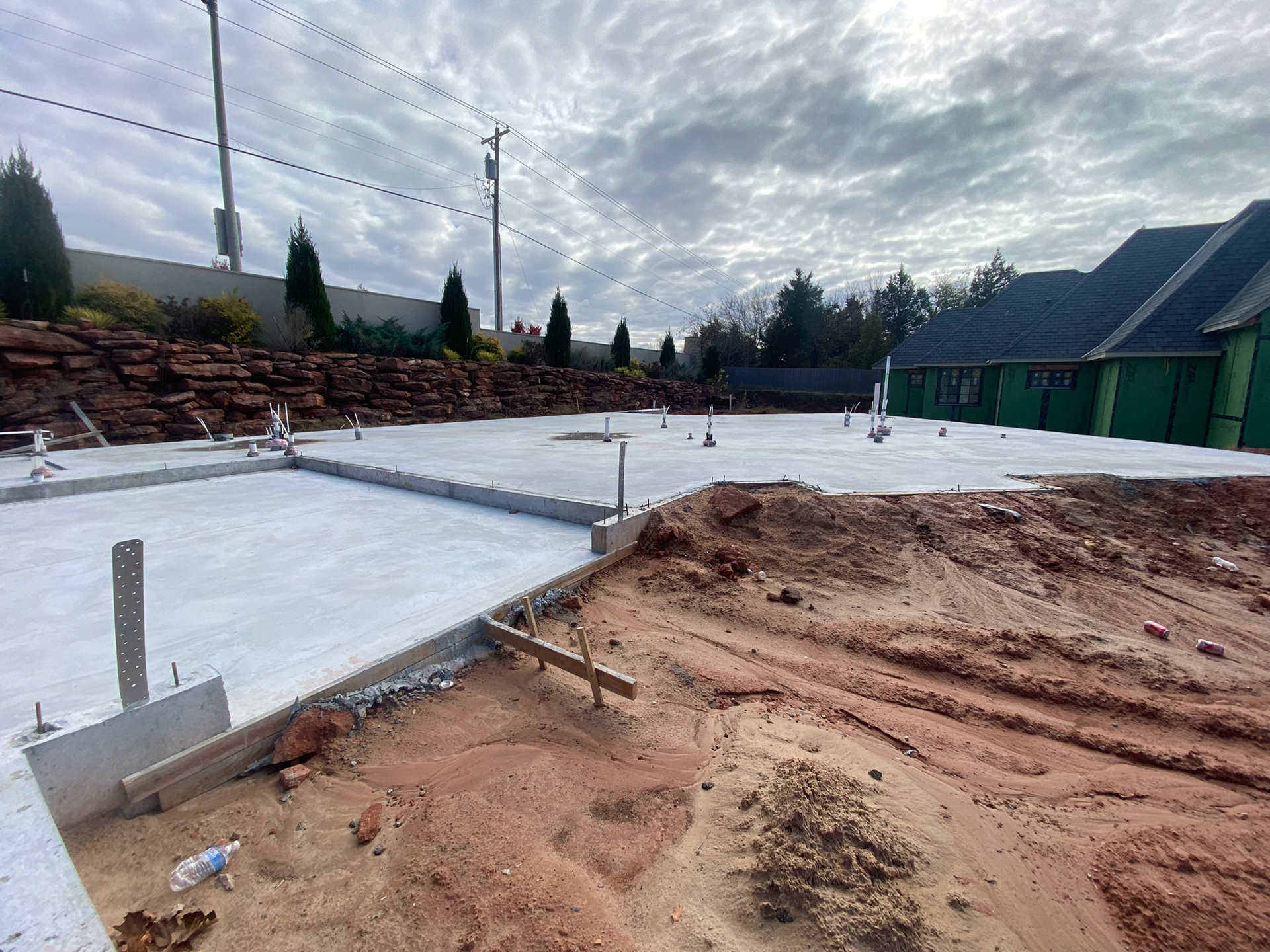

Completed base
Framing. View to the main entry Hall

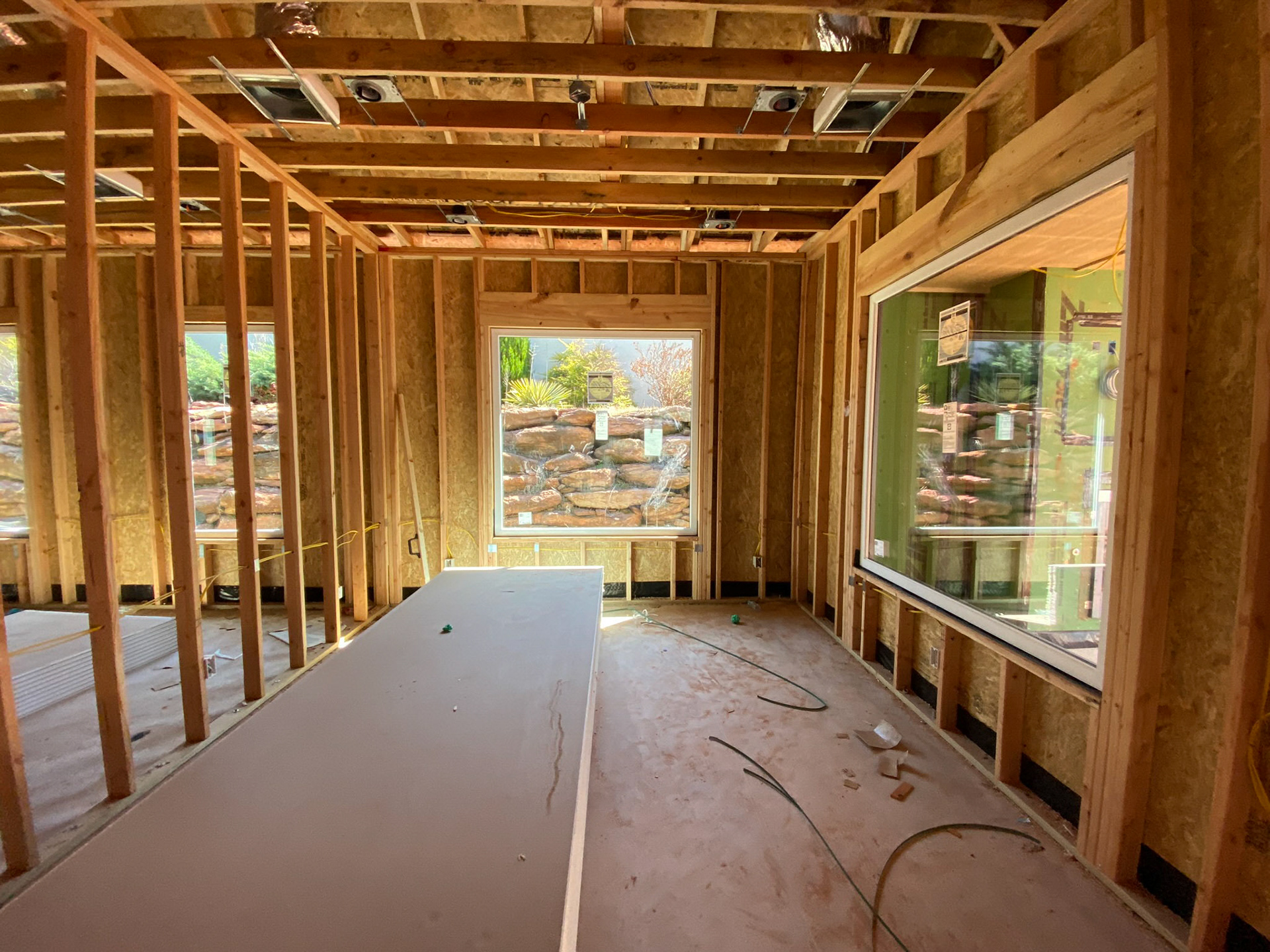

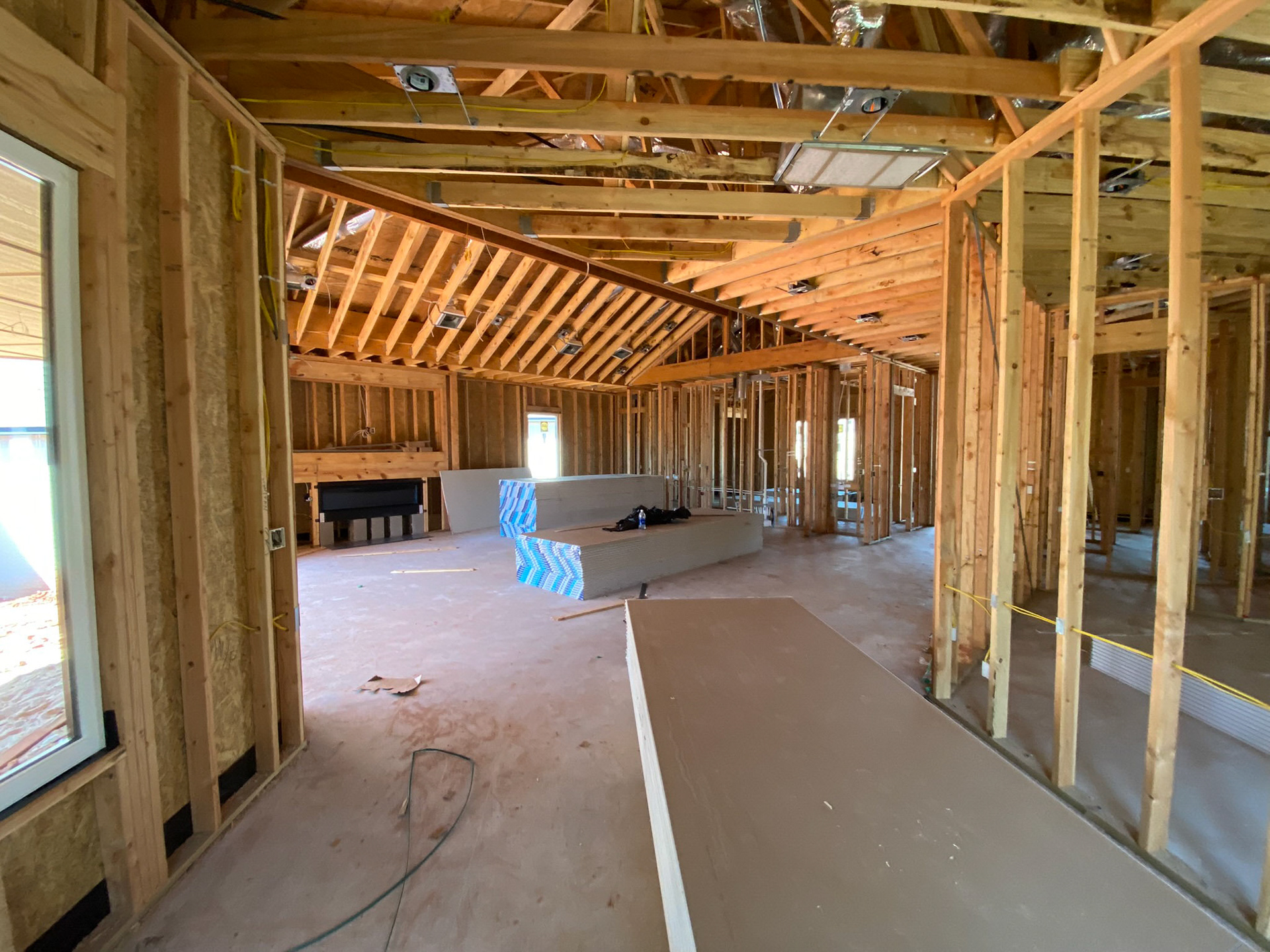

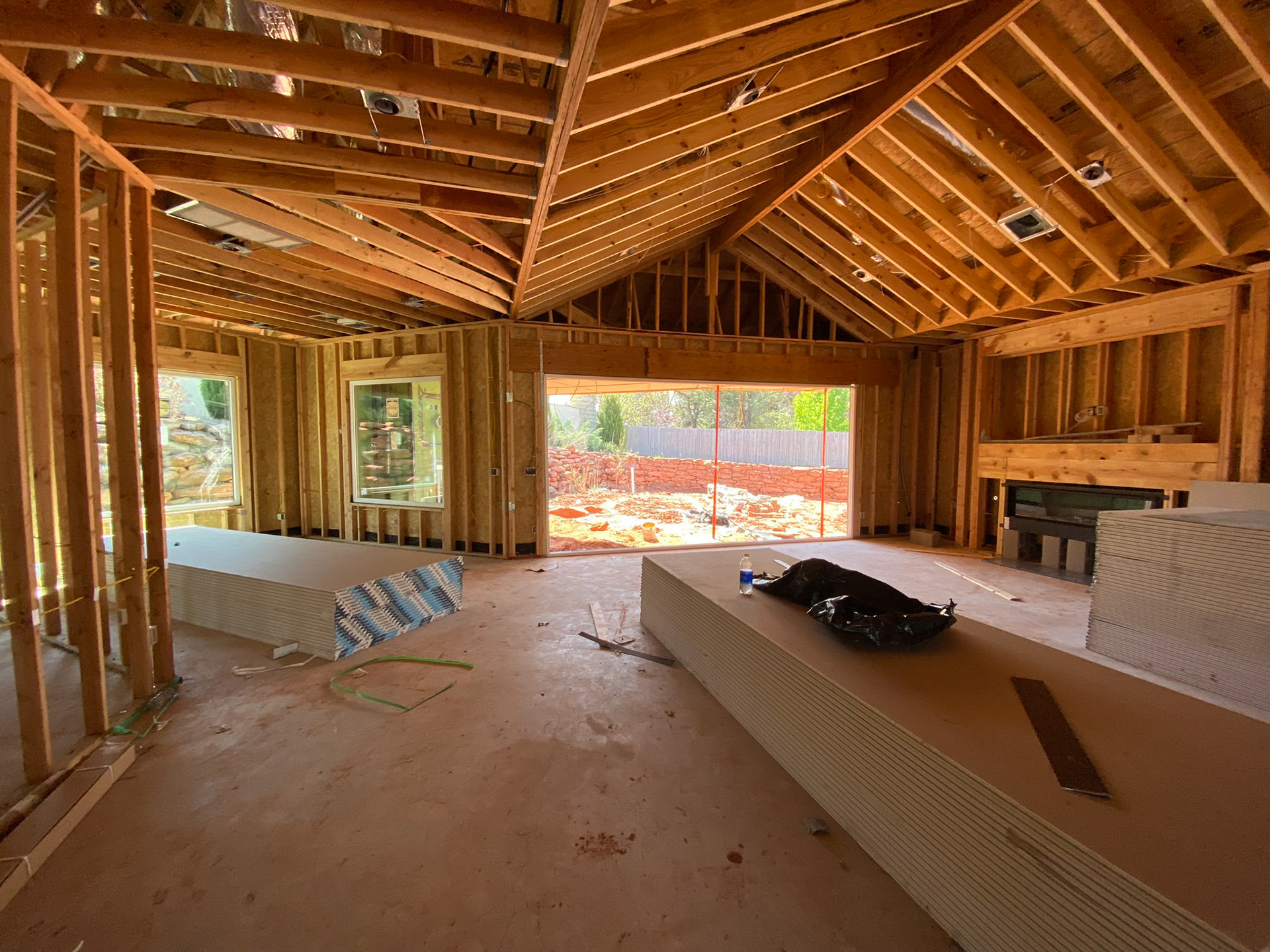

Framing. View to the main living and kitchen area
In the middle of the framing process
Main living area connected with Kitchen and dinning. Huge 8ft sliding doors connect the outdoor patio with living area
Dinning area, view from living area
Kitchen and living area. View from the dinning area

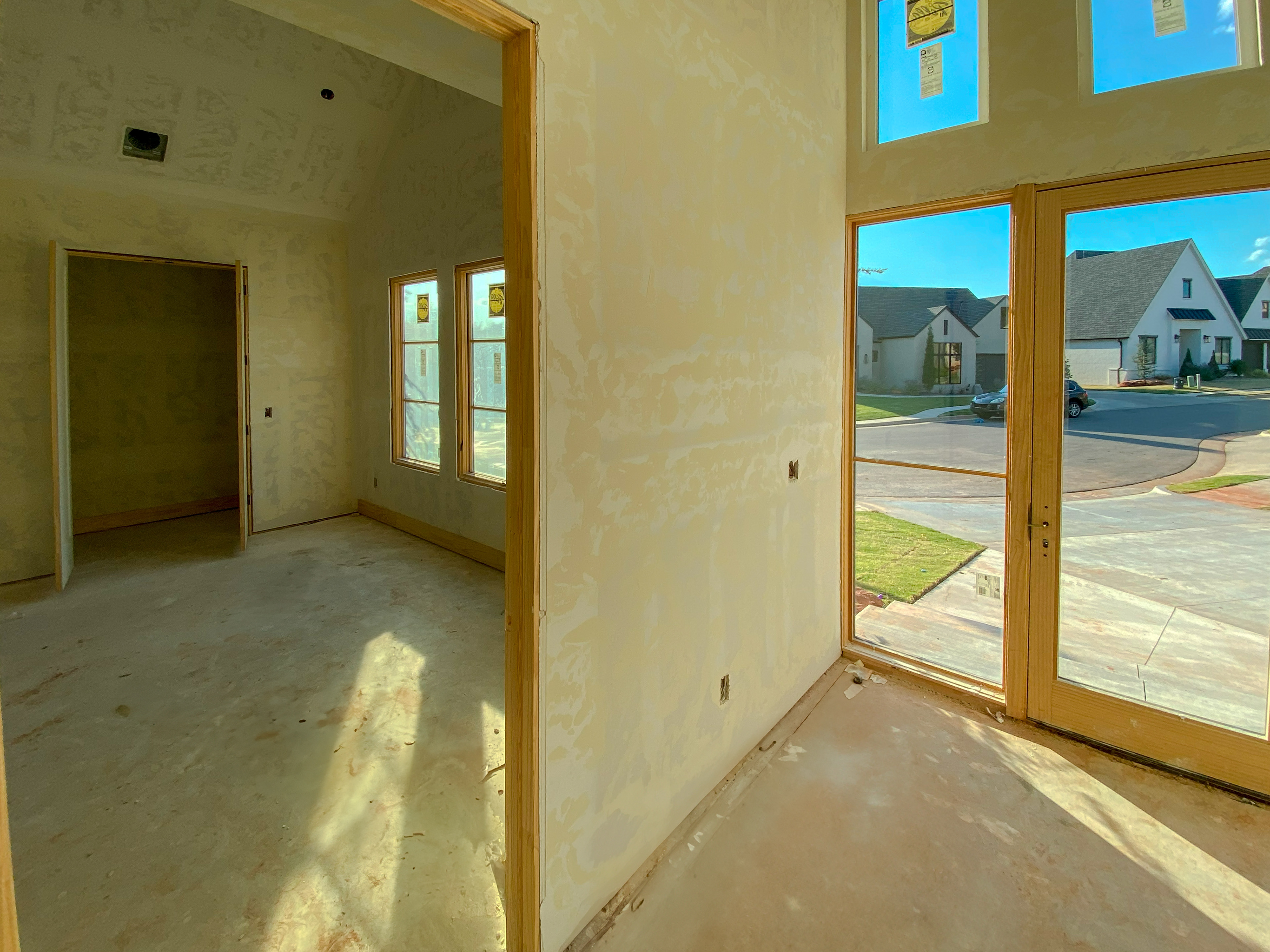

View outside from the entry hall

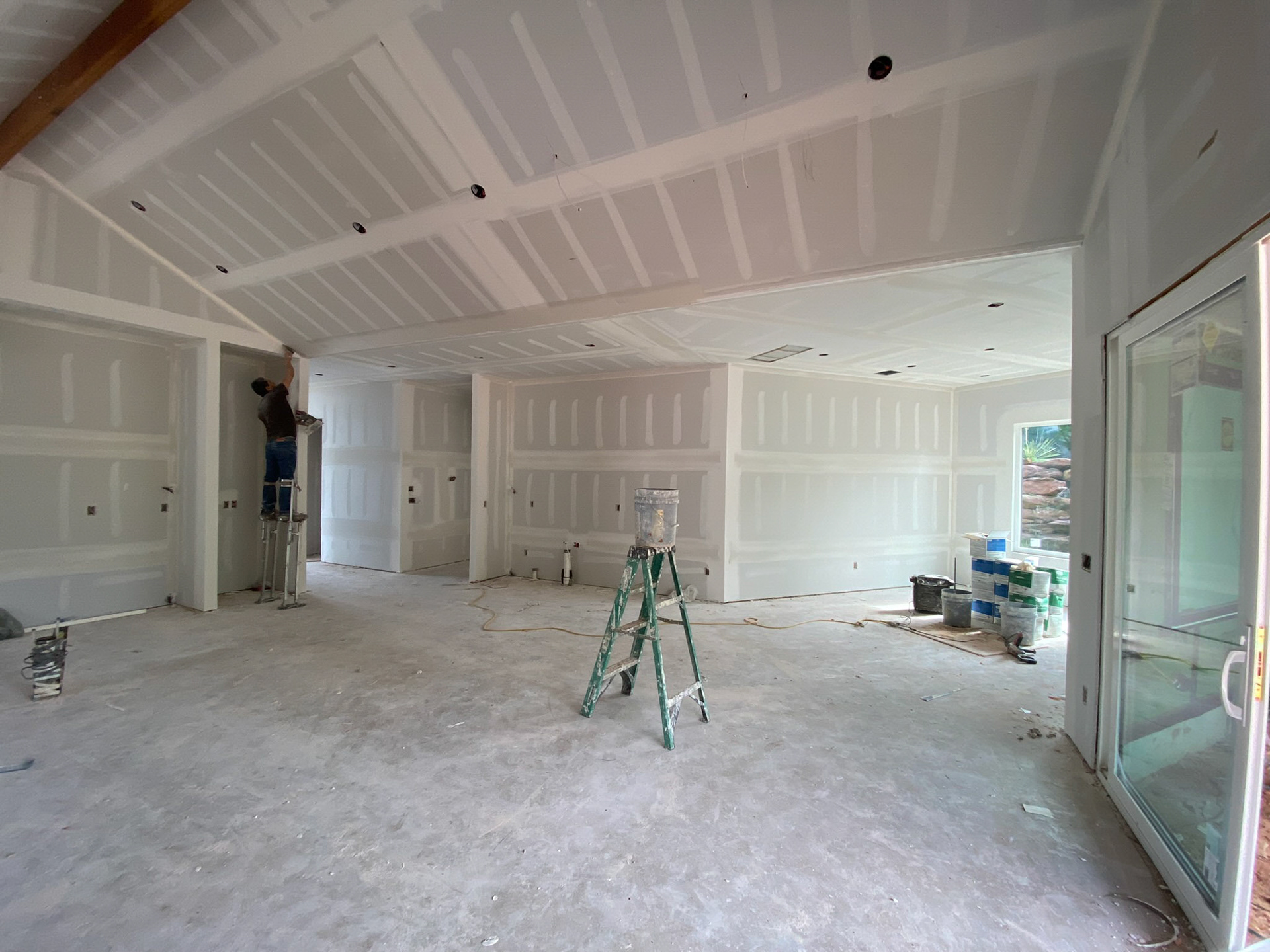

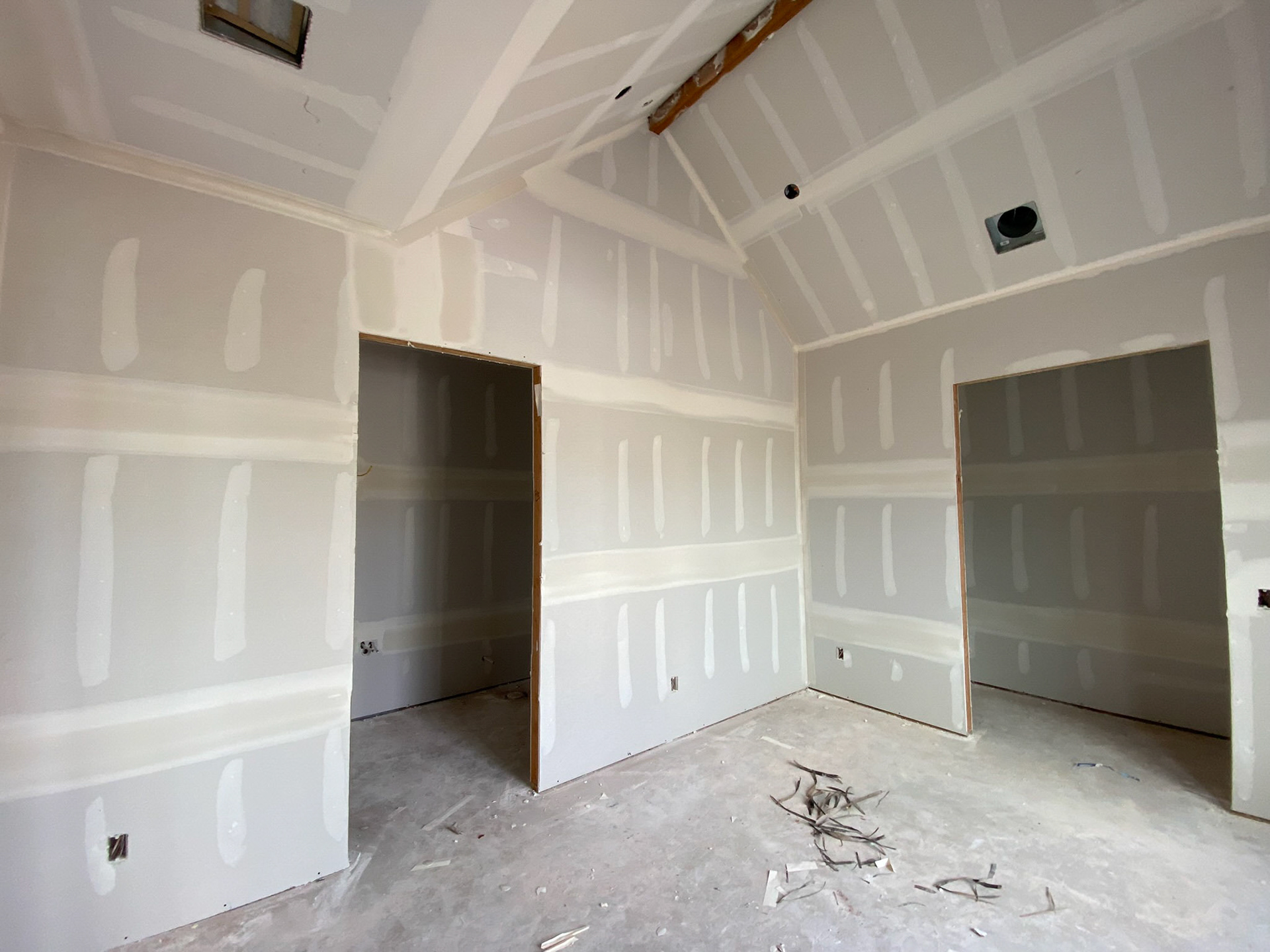

View from the Living and kitchen areas. Sheetrock installation and preparations for the paint wor
Bedroom area
Wood flooring installation process
Kitchen and bar areas

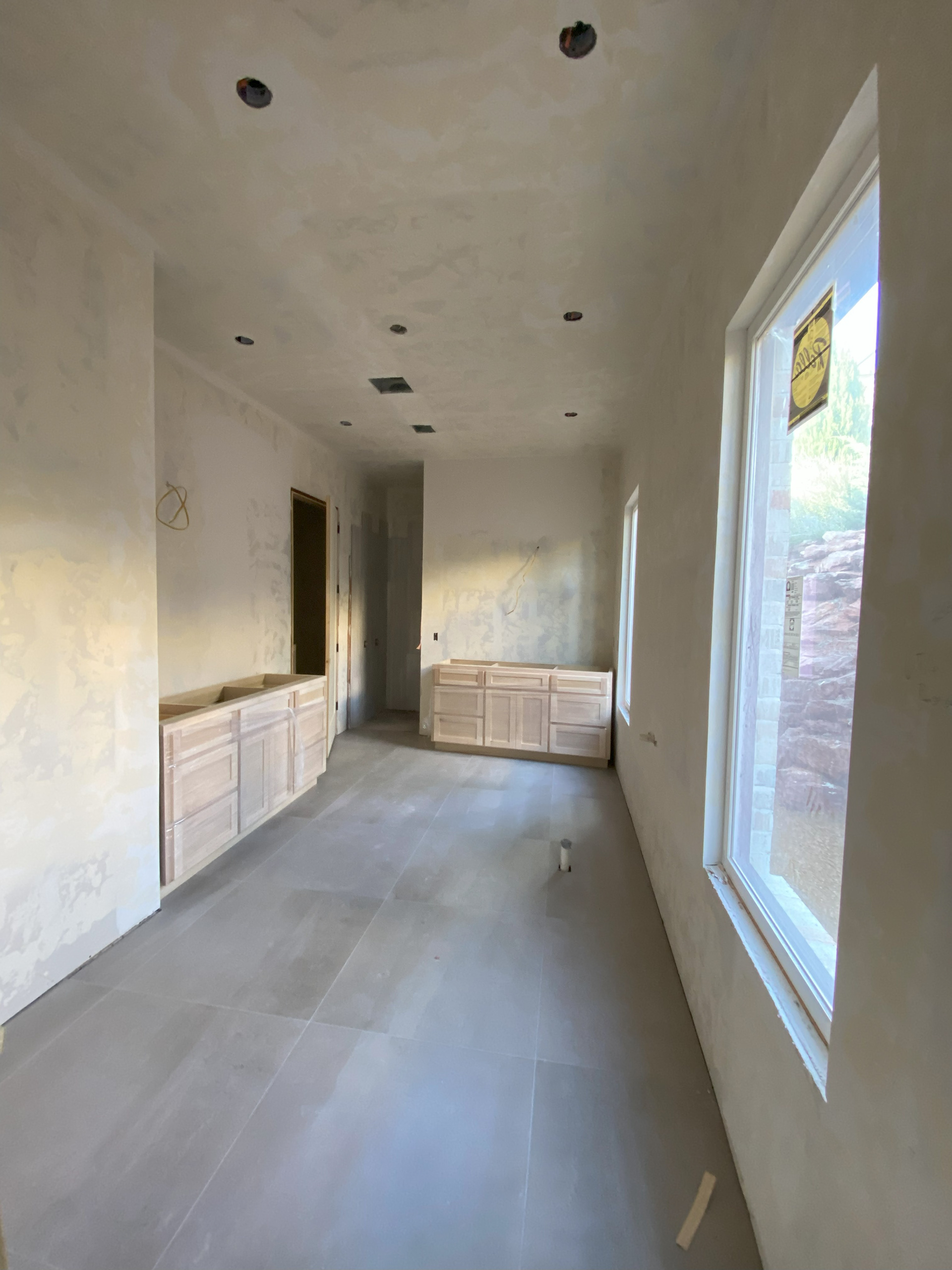

Prime bathrom with cabinets and tile floor installed
Laundry floor tile
Forming concrete path and driveway

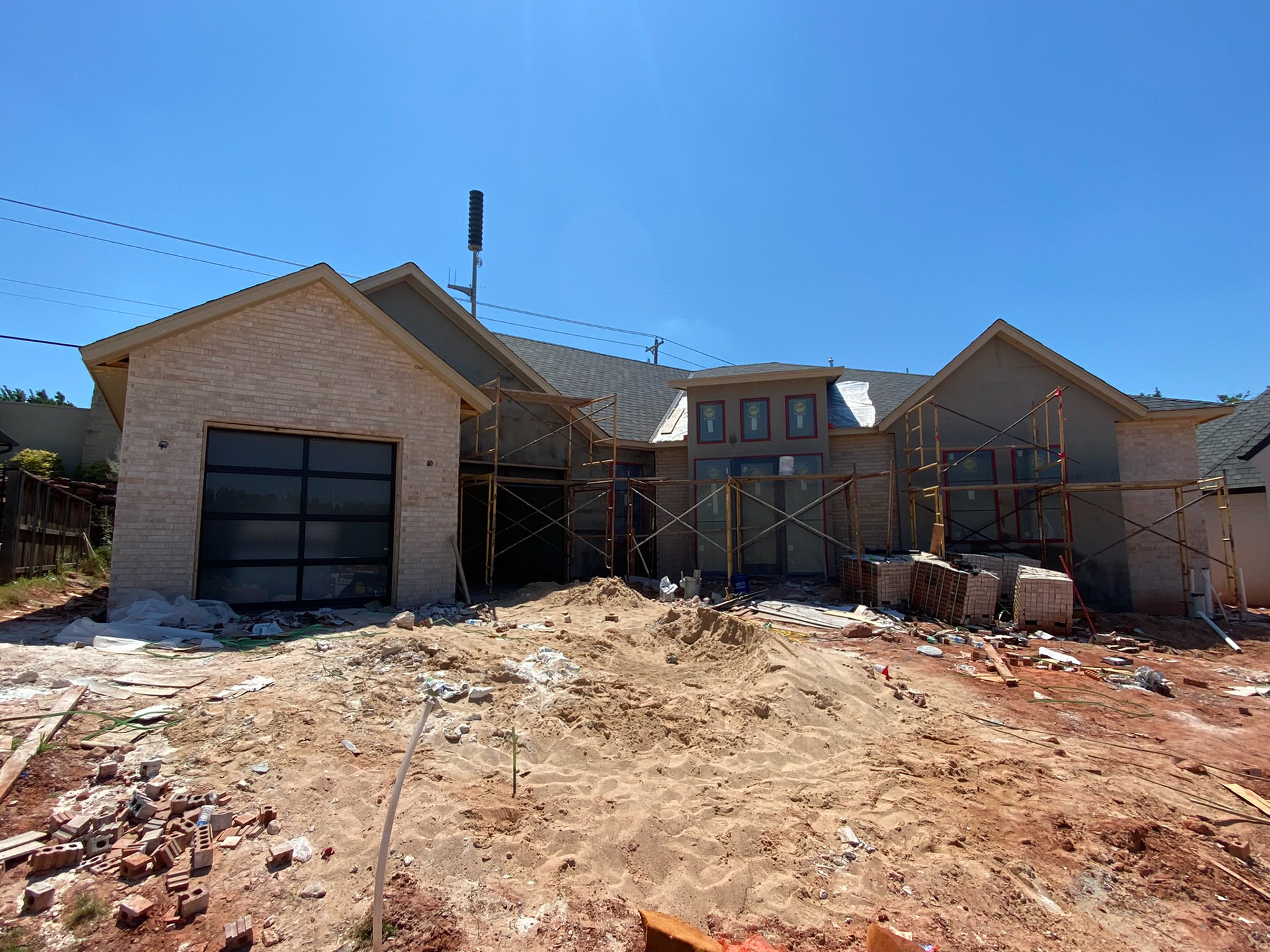

In the middle of placing brick and stucco
FINISHED RESULT

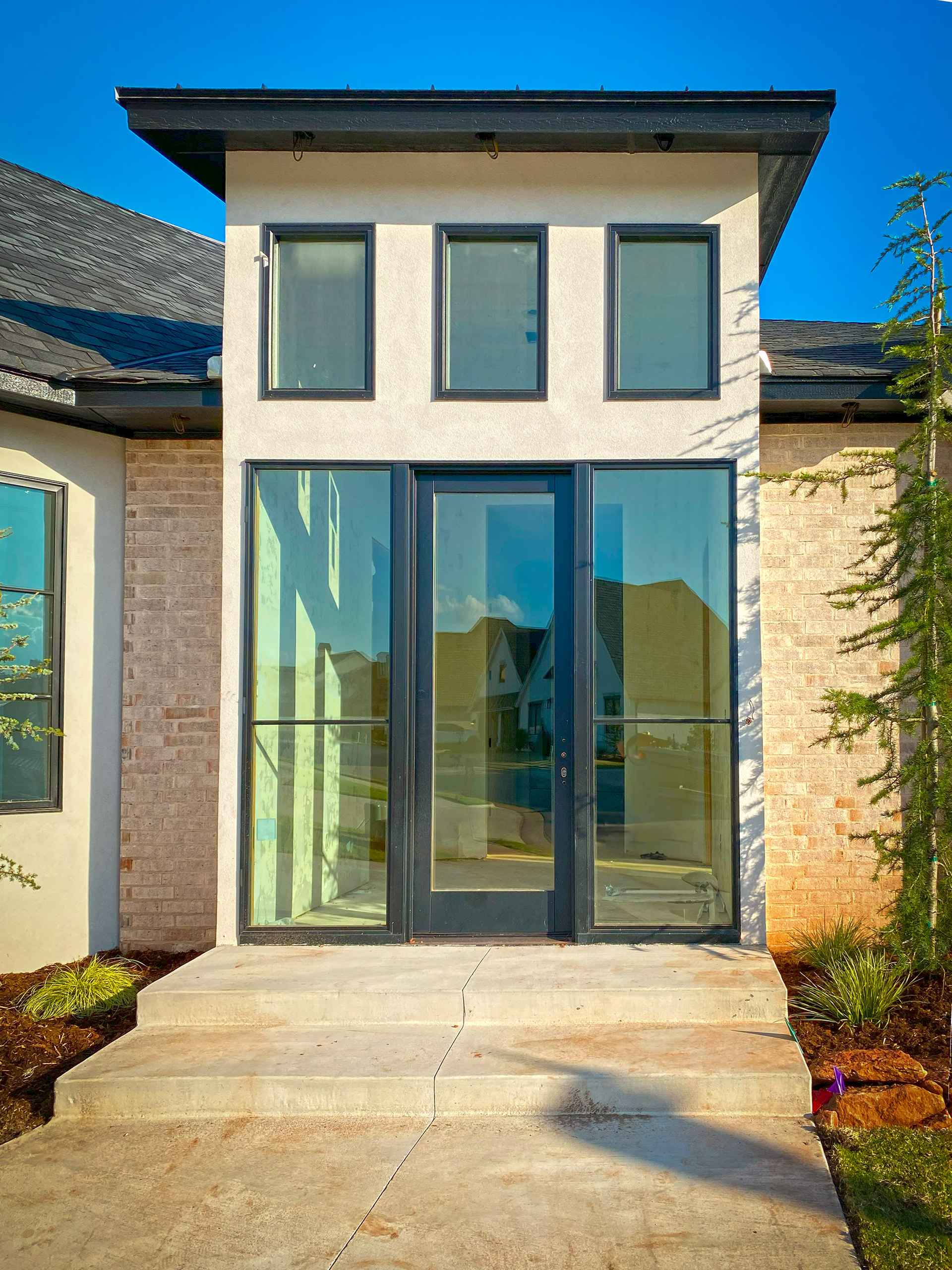

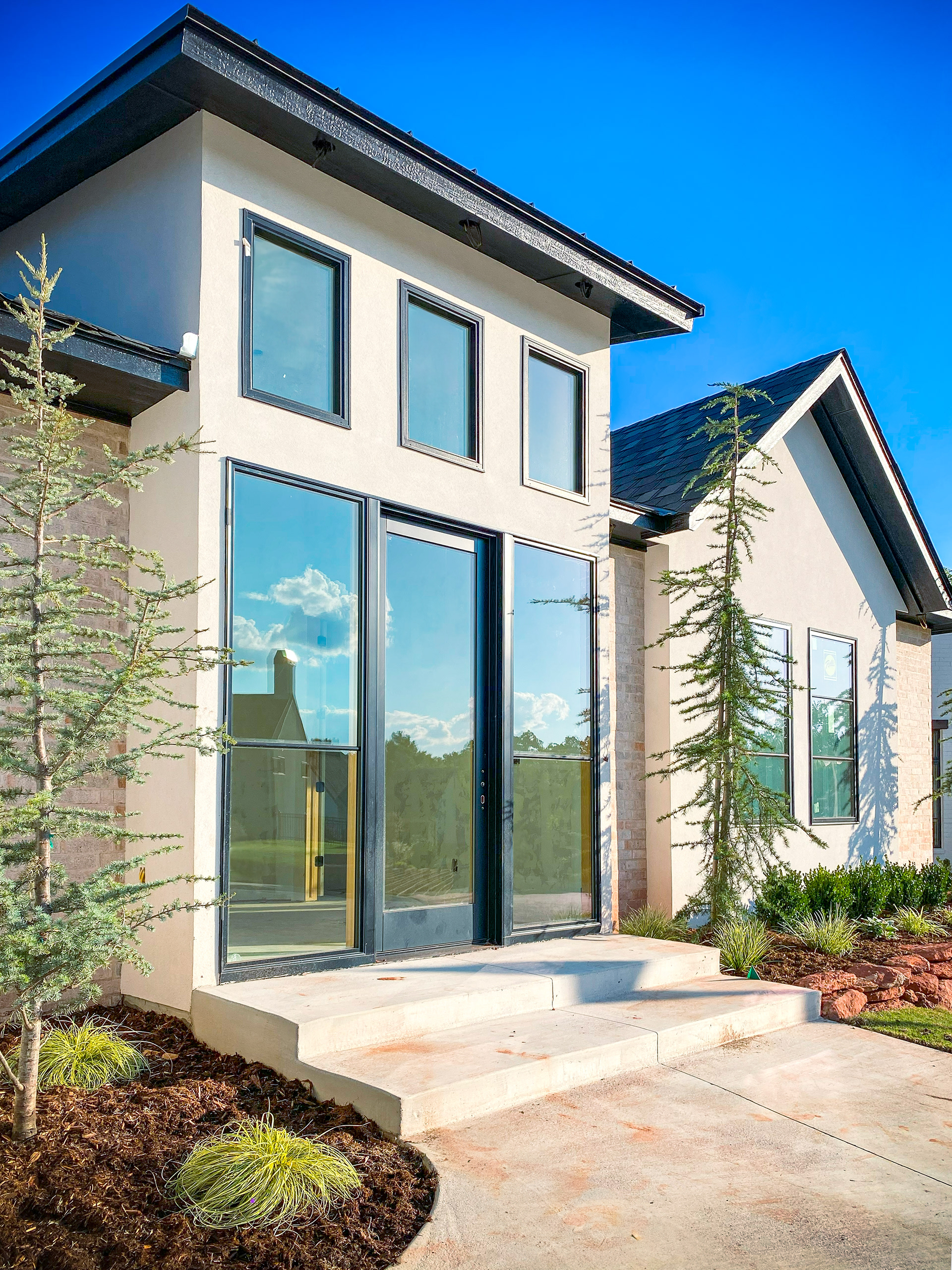

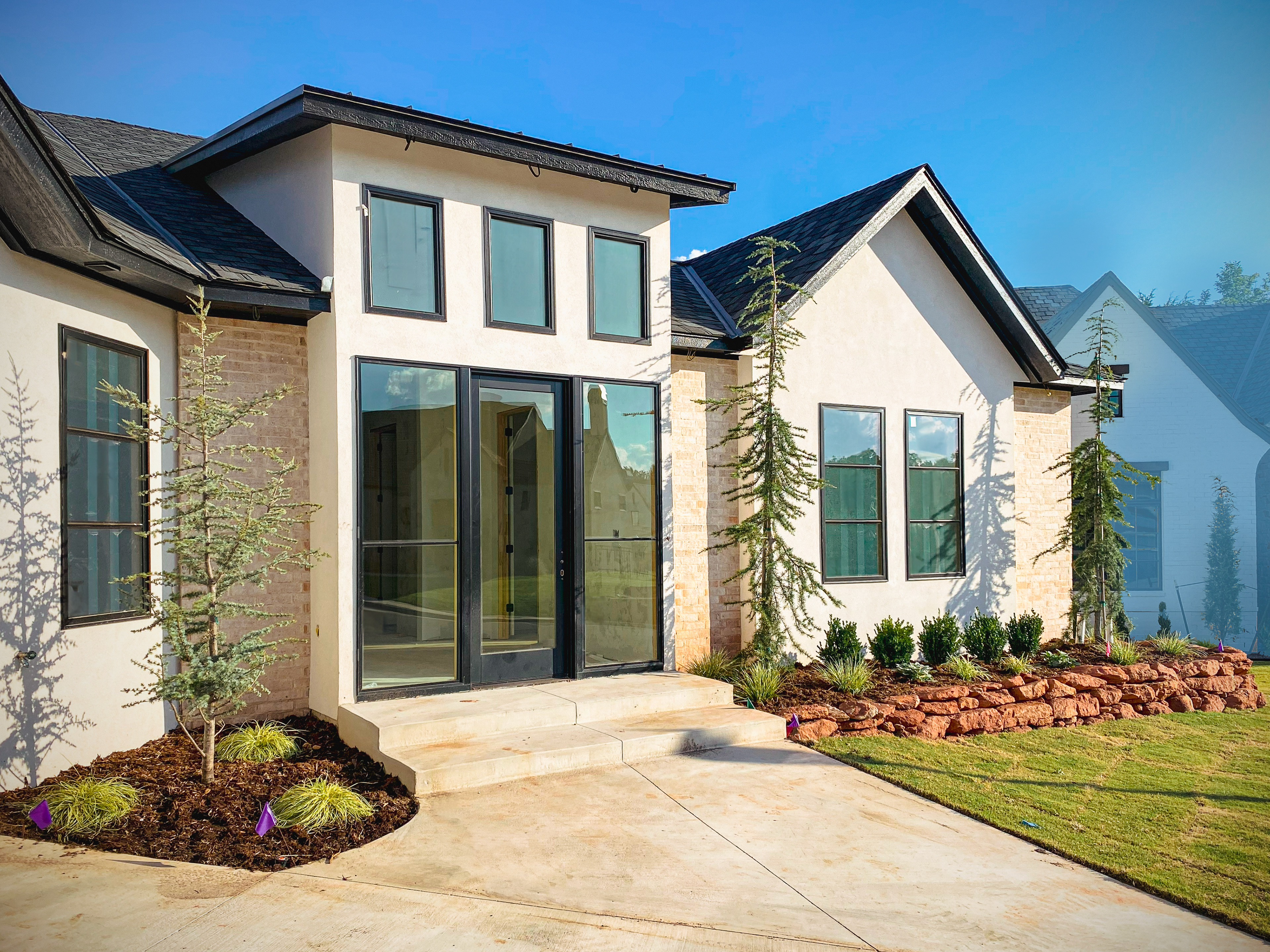

Front entry door

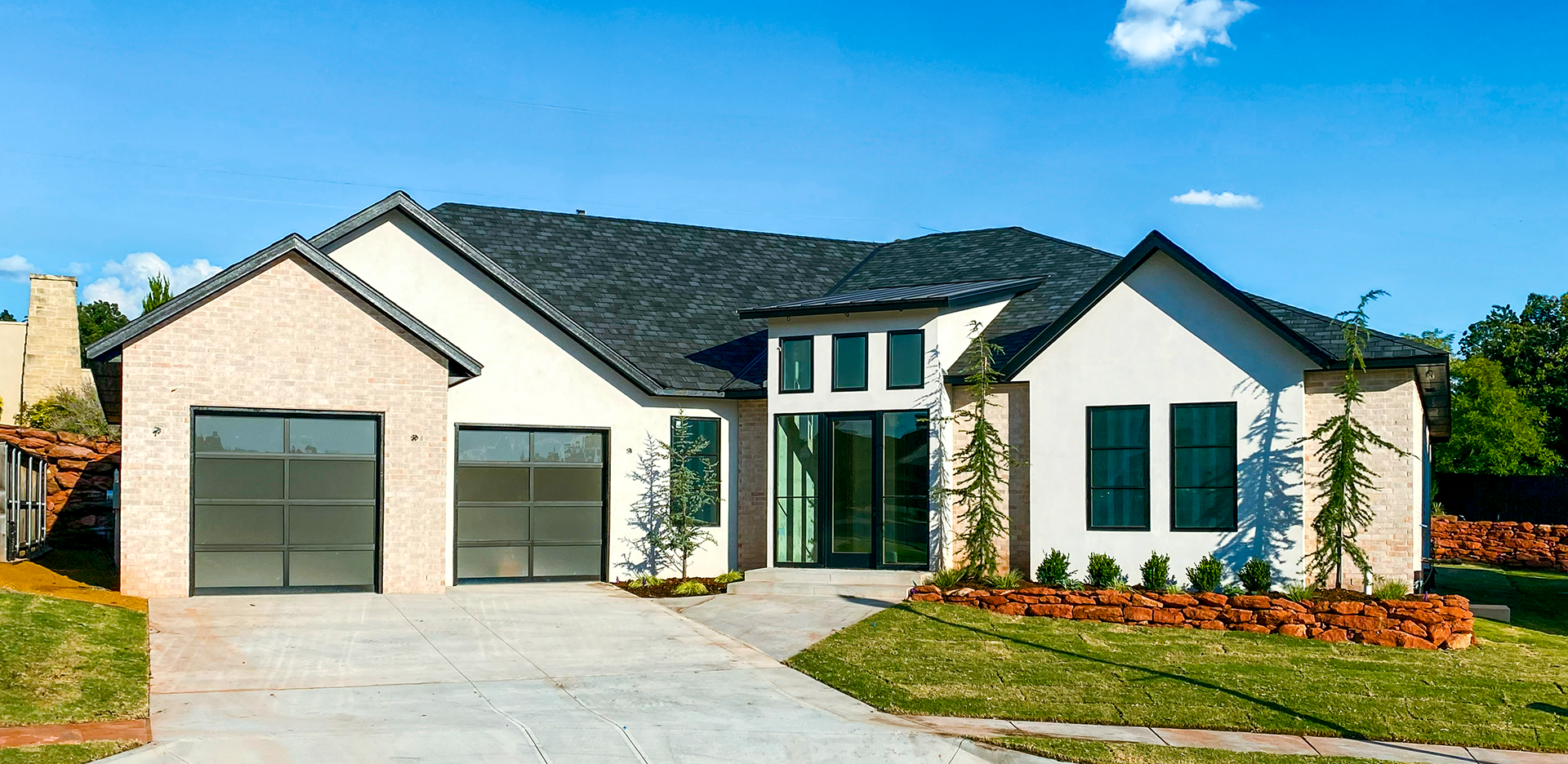

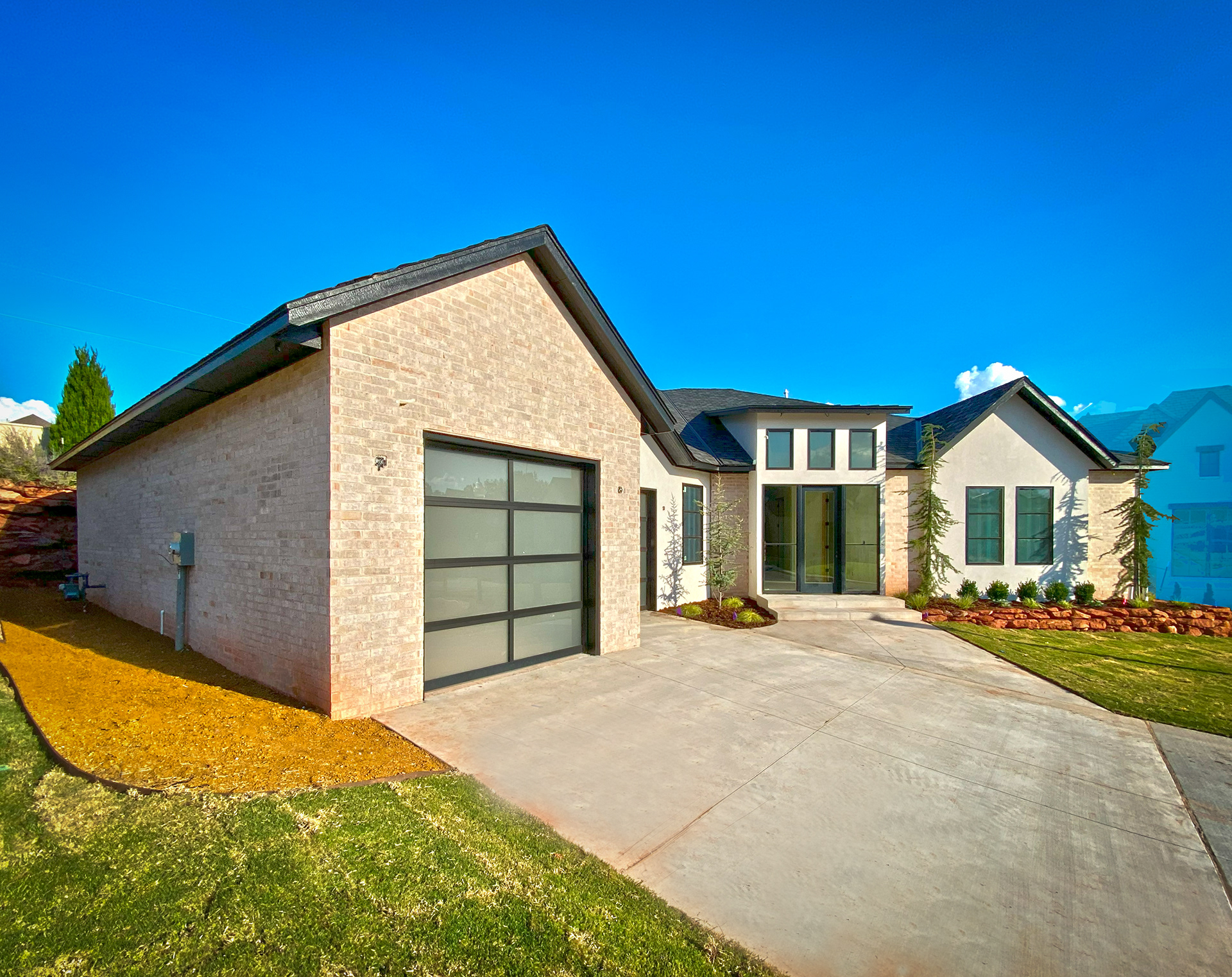

Front view / Garage side
Front entry hall

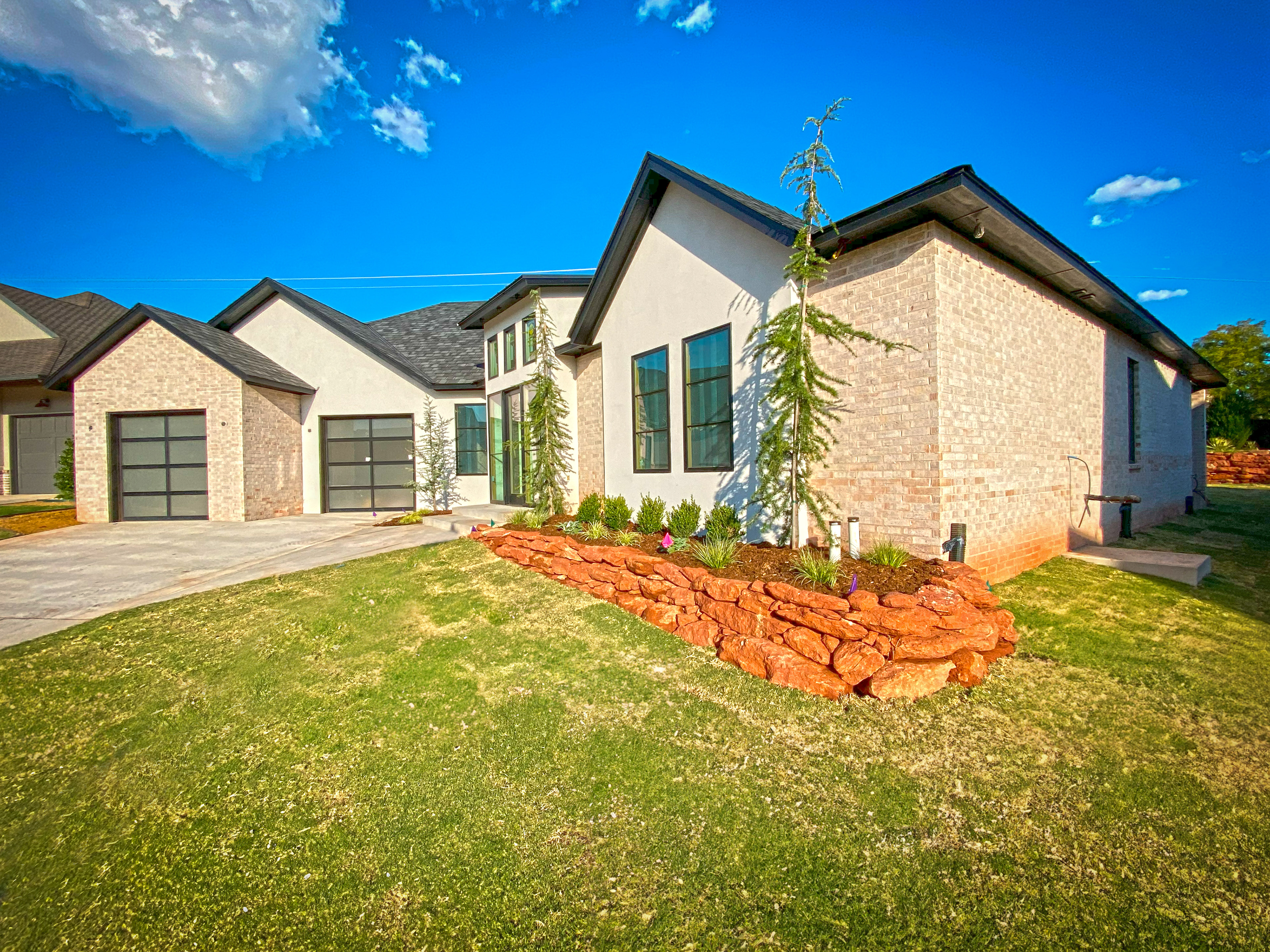

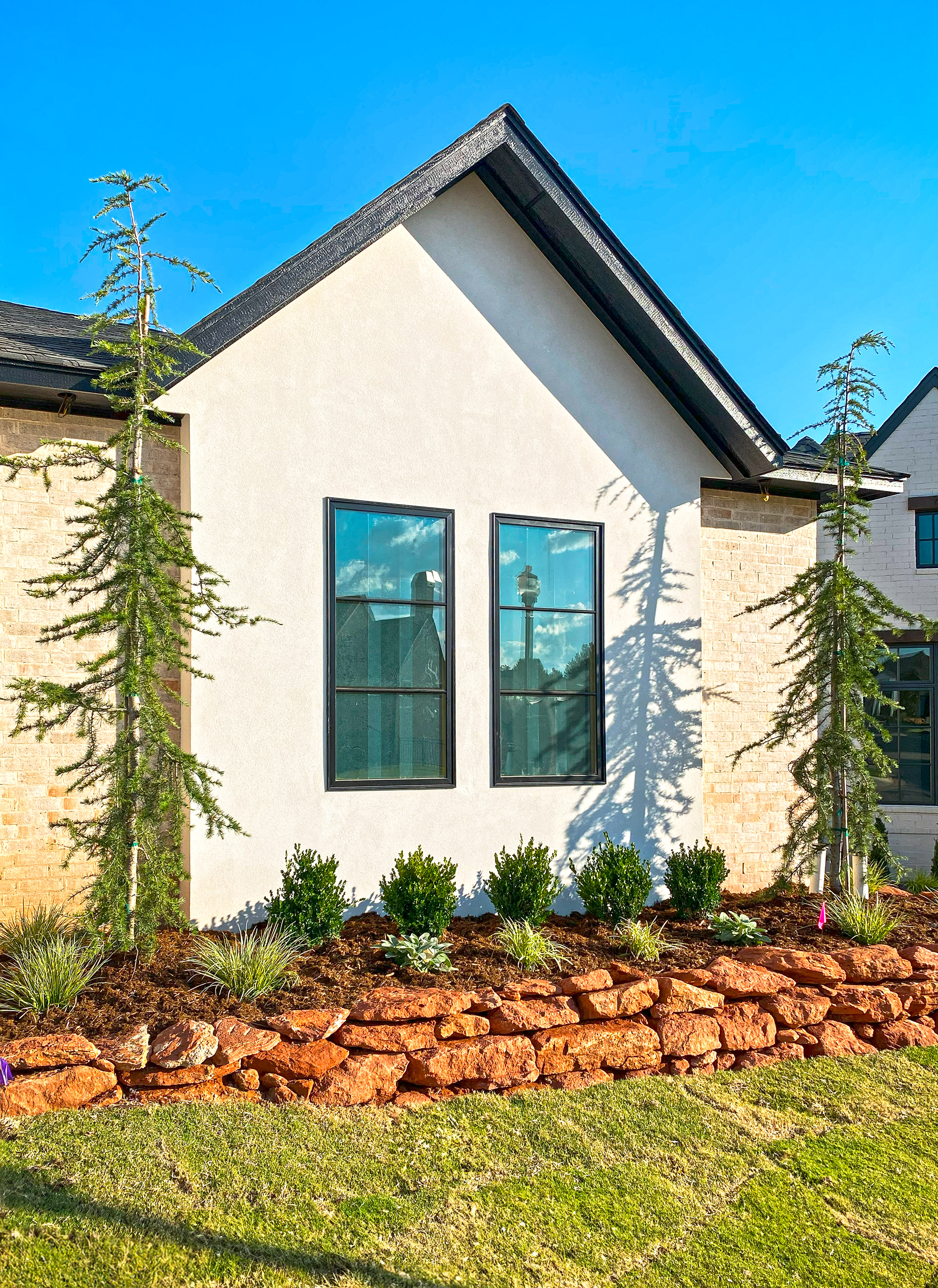

West view to the front

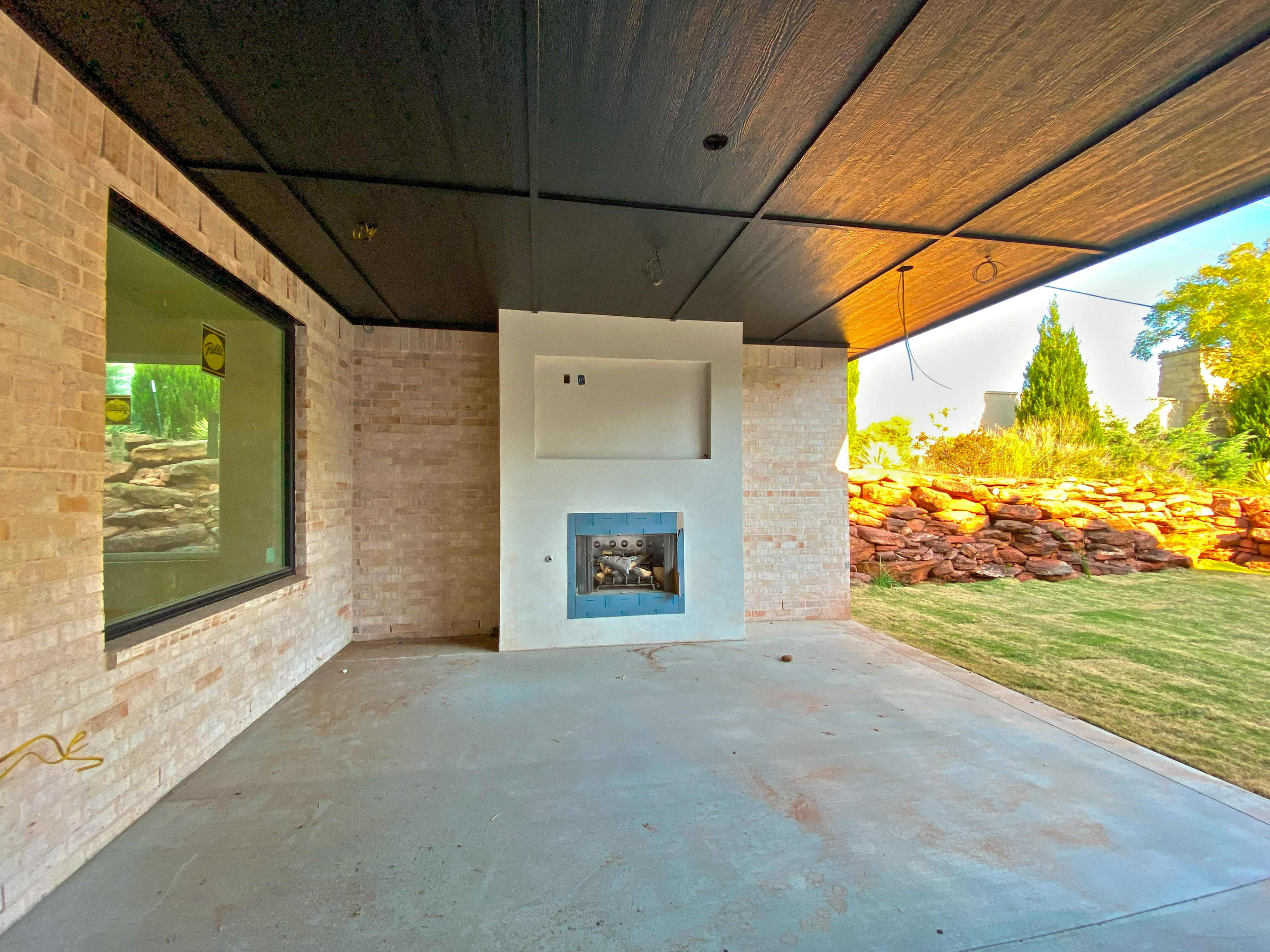

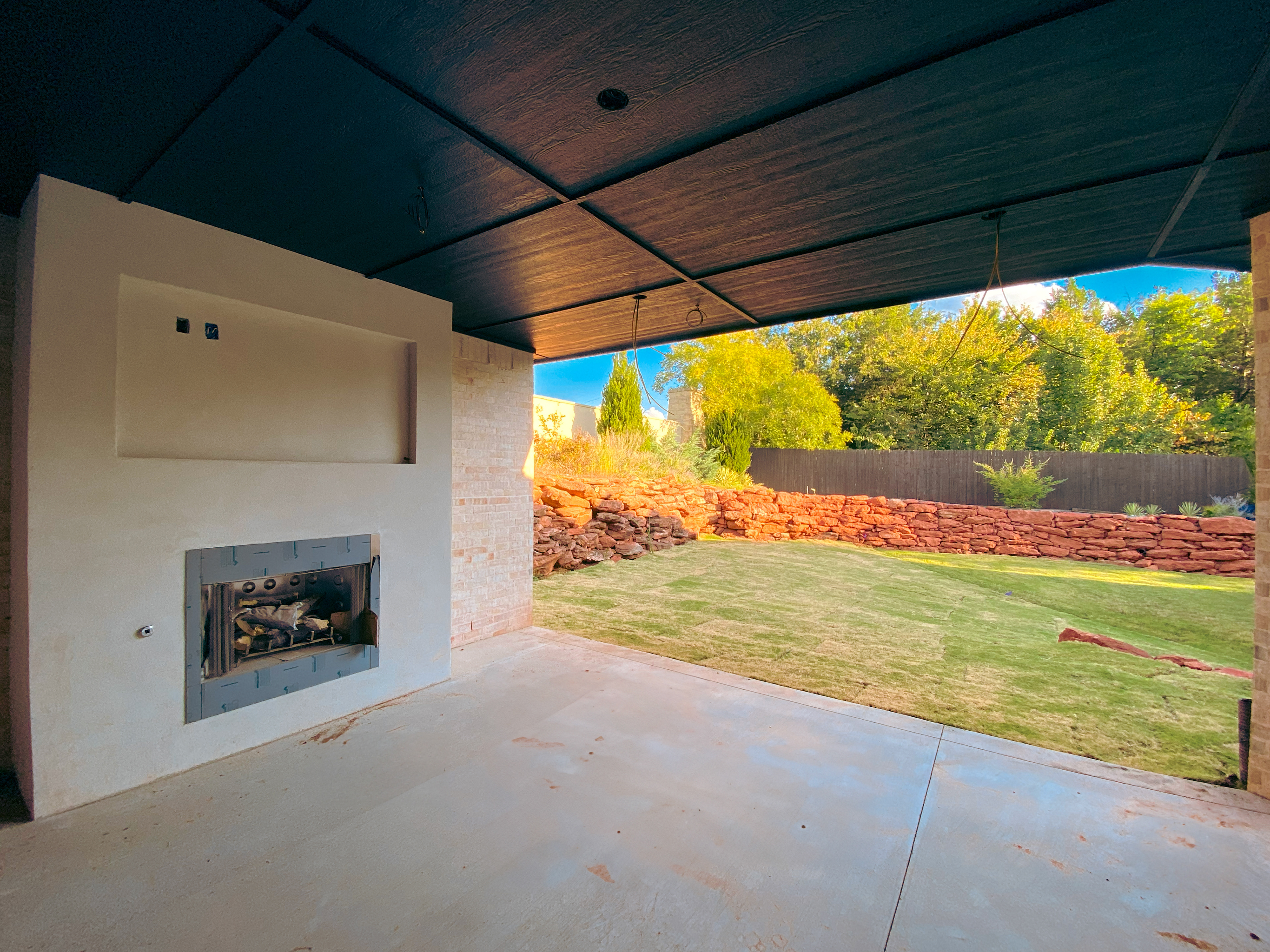

Back patio fireplace

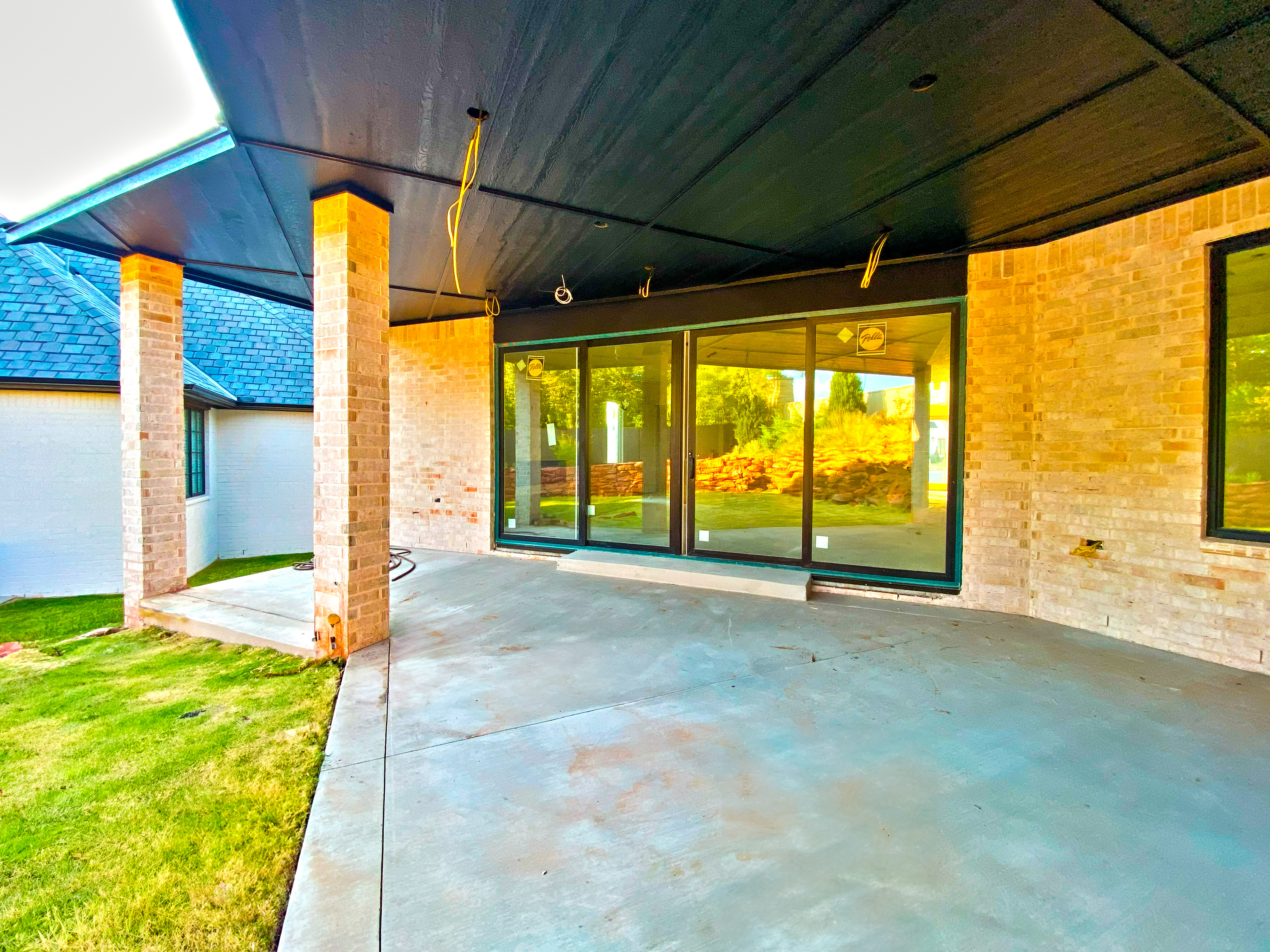

Back patio with sliding doors. Access to the living area and kitchen

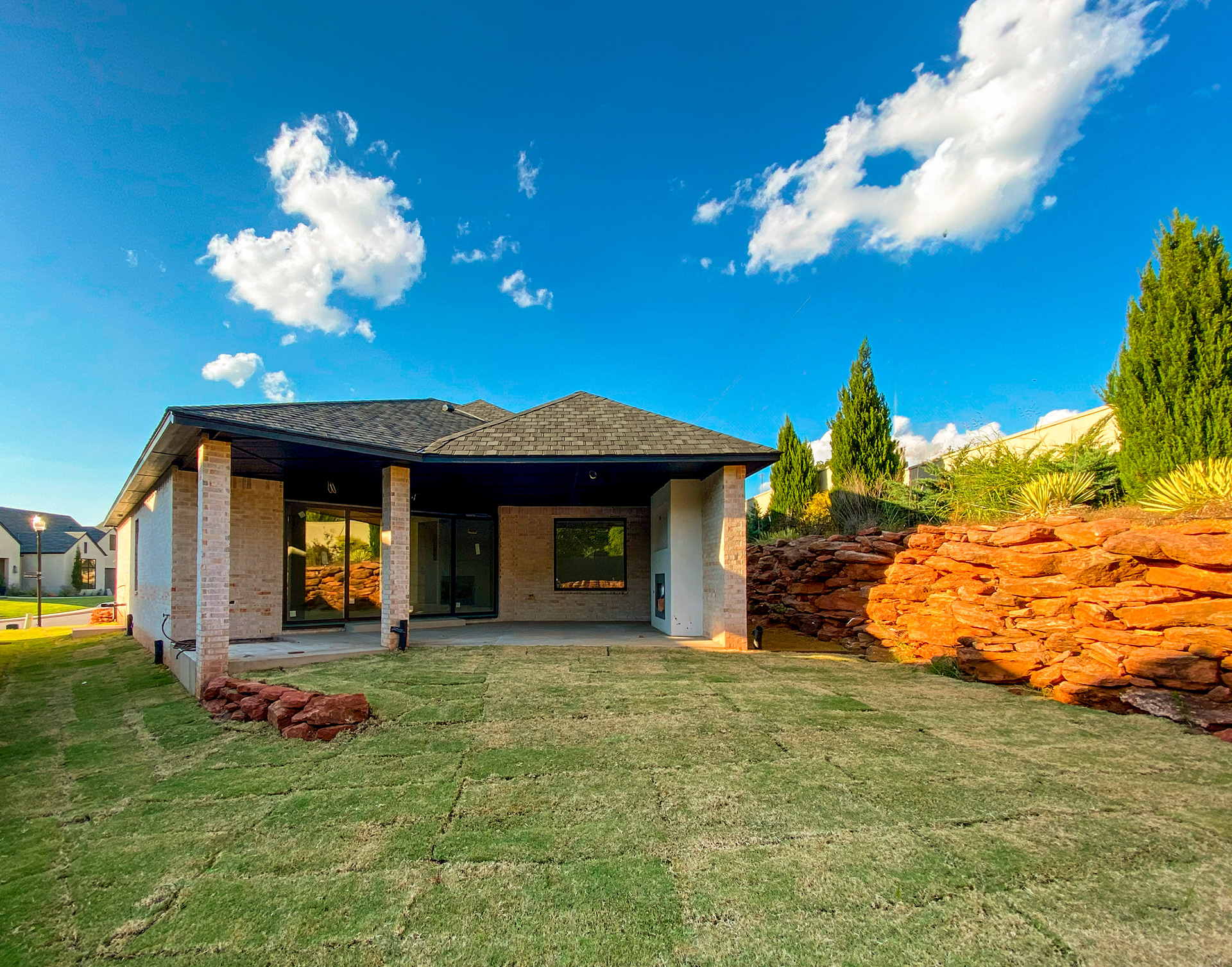

View from the back patio
